Application

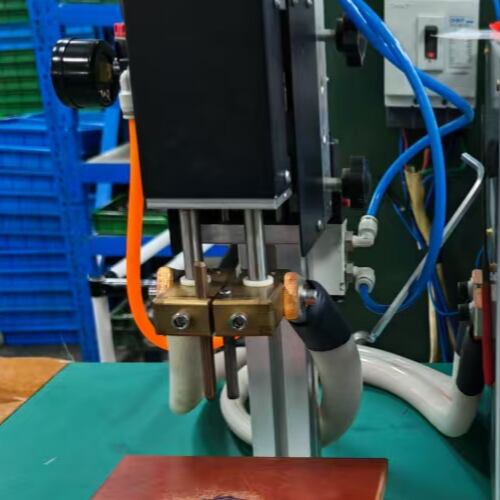

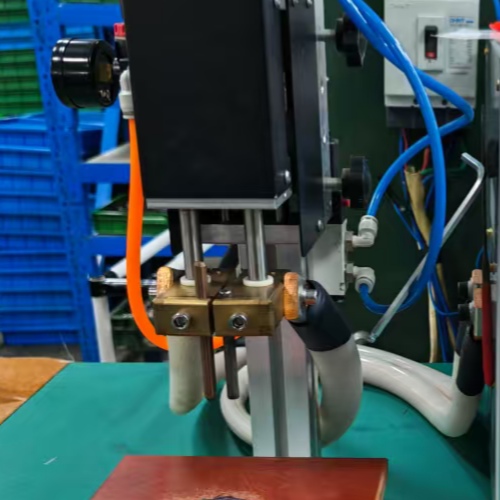

vs 1. Principle and Essence: Based on resistance welding, it applies mechanical pressure and high currents through electrodes, utilizing the heat generated by metal contact resistance to melt the weld point and achieve connection.   2....

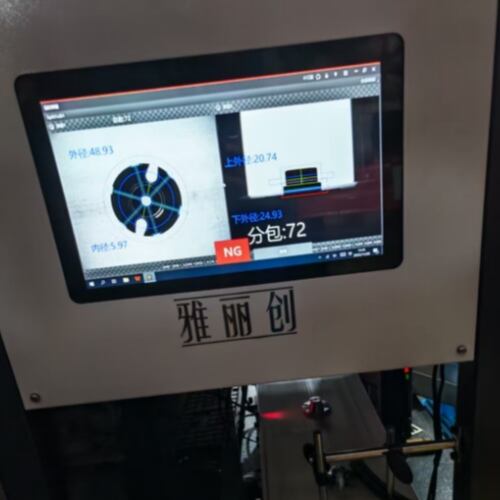

VS 1. Relies on manual visual inspection and tools such as calipers/micrometers; single-batch inspection takes a long time and is easily affected by the condition of the personnel. 2. Significantly influenced by the inspector's experience, f...

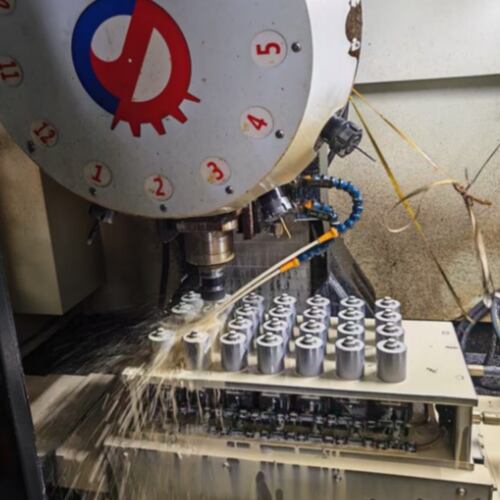

VS 1. The positioning accuracy is poor, with hole position deviations generally ranging from ±0.1 to 0.3mm, greatly affected by manual marking and clamping errors. 2. Dimensional consistency is unsatisfactory, as the feed depth relies ...

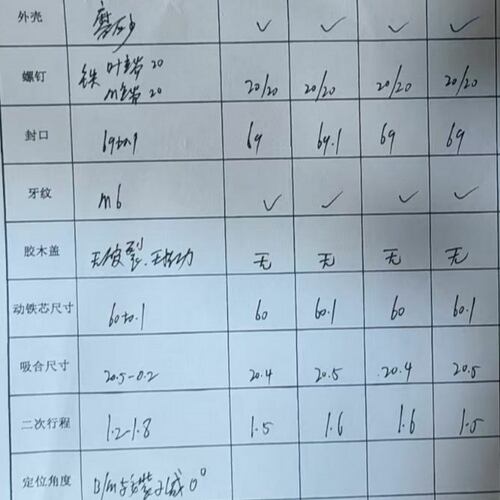

VS 1. Quality entirely depends on production stability, and defective products reach the end users, resulting in extremely high external loss costs. 2. No quality traceability capability, leading to recurring similar issues. 1. Intercept ...

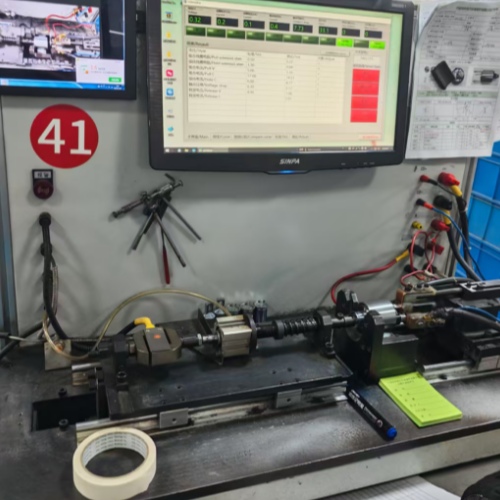

VS  1. Accuracy is limited by the instrument itself and manual operation. For example, during a withstand voltage test, the voltage adjustment by an operator can deviate by ±5%; in insulation resistance testing, reading errors var...

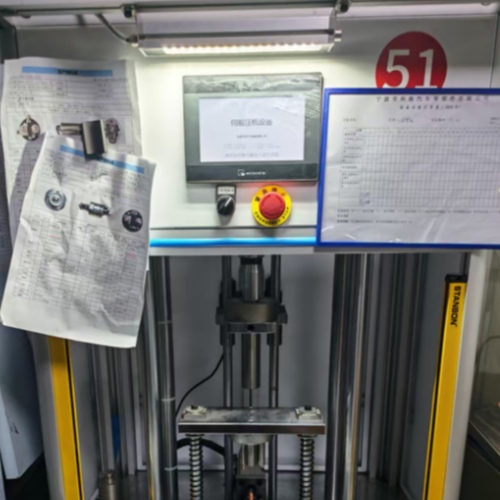

VS  Press Machine: 1. The pressure valve must be manually adjusted, and the mechanical stops must be replaced. Changing the mold takes 20 to 40 minutes. Different operators achieve significantly different results, which can easily cause...

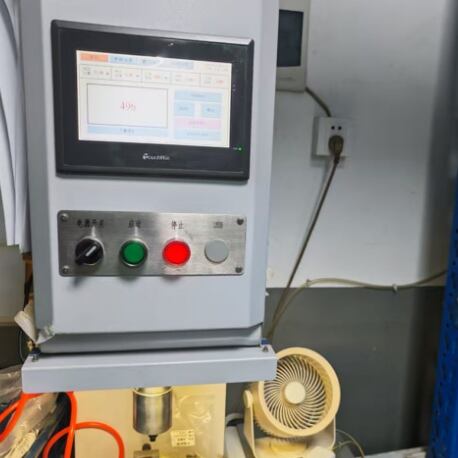

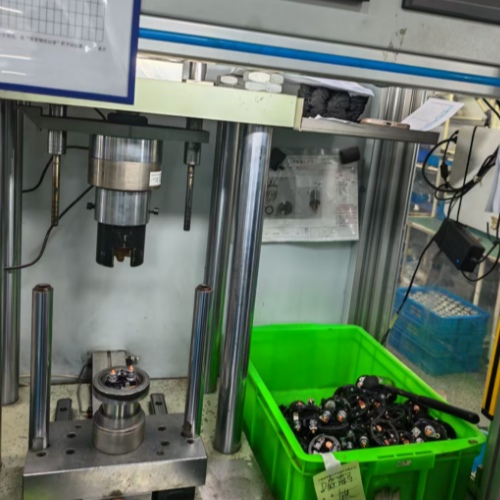

VS 1. Pressure control error: Pneumatic ±3%-5%, hydraulic ±1%-2%, significantly affected by air source fluctuations or oil temperature. 2. The rivet head positioning accuracy is ±0.1-0.2mm. It is difficult to precisely c...

VS 1.   Riveting efficiency is low and difficult to adapt to high-speed mass production 2.    Sensitive to environmental temperature; riveting stability decreases at low temperatures  3.    The equipment's...

1. Precision control to meet the stringent performance requirements of electromagnetic switches 2. Highly reliable and easy to maintain, reducing downtime losses 3. It is difficult to modify custom equipment later. 4. High investment, long pa...
